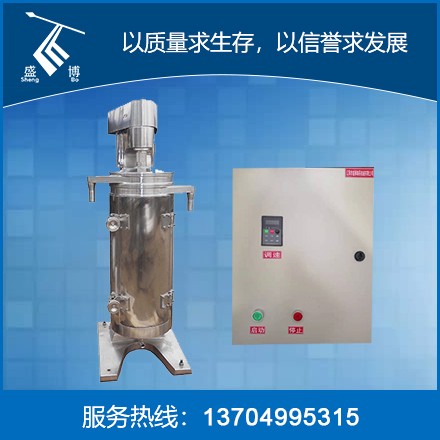

GF150 tubular centrifuge

GF150 tubular centrifuge【Specification】ModelGF series tubular centrifugeWater supply capacity(t h)Motor power(kw)Ove

Details

GF150 tubular centrifuge

Specification
Model GF series tubular centrifuge Water supply capacity(t/h) Motor power(kw) Overall weight(kg) External dimensions(mm)
Diameter(mm) Bowl Volume(L) Speed(r/min)
GF150 142 10 10000-14000 1.5 3 700 600*500*1670
GF125 125 8 9000-15000 1.3 3 600 600*500*1670
GF105 105 6 8000-16300 1.2 2.2 450 600*500*1670
GF75 75 2 10000-20000 0.6 1.5 300 500*450*1200


Characteristics
It is used to separate various emulsions, especially for liquid-liquid separation with little difference in specific gravity between two phases and liquid-liquid-solid separation with a small amount of magazines.
For example, transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification, purification of various micropowder materials, SPAN-80 feed liquid, separation of various oral liquids, various liquid medicines, and "920";  Separation of plasma biological drugs and extraction of plasma from animal blood;  Edible oil, Cai pan soaking solution, tea polyphenol, refinement of soybean concentrated phospholipid, oil-water separation and sewage treatment, etc.

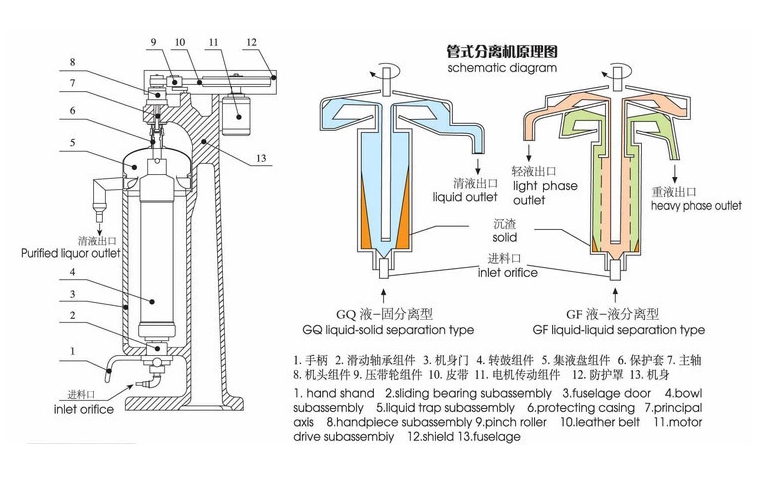

Principle】
The separator consists of a machine body, a transmission system, a rotating drum, a liquid collecting system and a liquid inlet system.
The upper part of the rotating drum is linked with the flexible main shaft, and the bottom part is a damping sliding bearing.
When the equipment works, the rotating drum rotates at high speed around its own axis, forming a strong centrifugal force field.  The material is injected from the liquid inlet nozzle of the bottom liquid inlet system, and the centrifugal force in the rotating drum forces the material liquid to flow upward along the inner wall of the rotating drum and delaminate due to the density difference of different composition of the material liquid.
