【型號及規格參數】

型號	血液離心機			通水能力（t/h）	電機功率	整機重量	外形尺寸
	直徑	轉鼓容積（L）	轉速（r/min）
75	75	2.2	10000-19000	15200	1.5	300	760*450*1600
105	105	6	8000-16300	15700	2.2	570	840*500*1600
125	125	8	9000-15000	15750	3	610	900*500*1600
150	142	10	10000-14300	14300	3	665	900*550*1600


【主要用途】

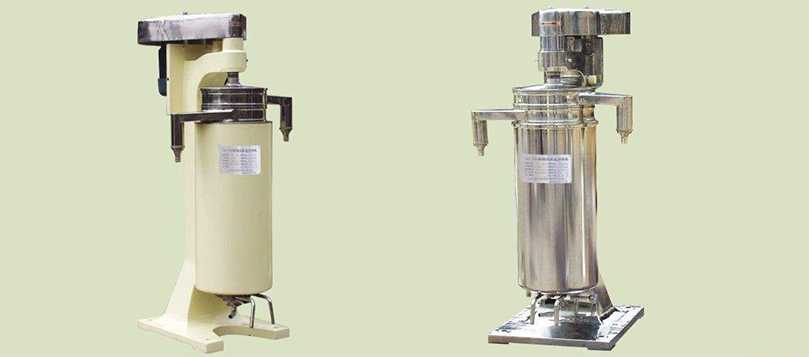

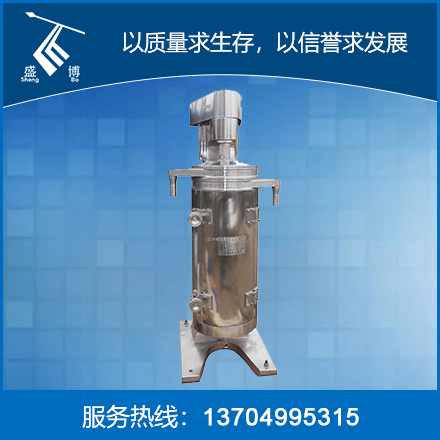

GFXB105型血液分離機是管式分離機的一種，該機是我公司在原有GF型分離機的基礎上，經過反復實驗改進成專用分離血液的機型,廣泛應用于人、豬、牛、羊、雞等多種血液的血漿與血球的分離。
該機的主要特點是血漿收益率高，且在分離過程中把血球的破碎率降至最低。
該機與物料接觸部分均由不銹鋼制成，可滿足制藥行業GMP要求。

在植物提取中的應用
分離過程是直接影響植物提取物終端產品質量的一道重要工序。提取液中的一些多糖、蛋白、果膠、皂甙以及一些采用過濾工藝無法去除的不溶性流體雜質，還有提取過程中殘留的細微顆粒等等。只要合理配置，采用離心工藝都能夠很好的解決，最終達到產品的提純目的，有效的提高產品質量。

在食品行業中的應用
可以用于食用醋，油品工業食油的精制，用于去除果汁飲料中的纖維、果膠、不溶性蛋白、殘余果肉等雜志，使飲料達到清澈透明的目的，用于天然色素的分離，去除原料溶液中的雜質和脂肪，用于制糖工業中的脫蜜，用于啤酒、使用酵母的分離。


【工作原理】

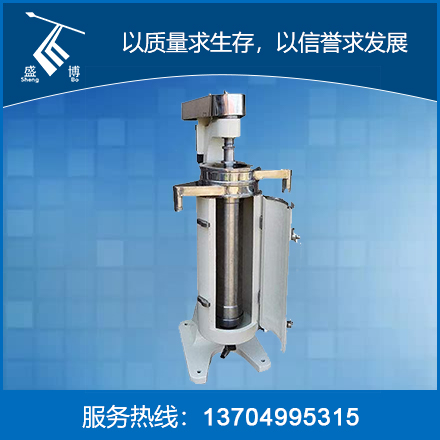

分離機由機身、傳動系統、轉鼓、集液系統、進液系統組成。
轉鼓上部與撓性主軸鏈接，底部是阻尼滑動軸承。
密度大的液相形成外環，密度小的液相形成內環，流動到轉鼓上部各自的出液口排出，微量固體沉積在轉鼓壁上，待停機后人工卸出。







Blood centrifuge

【Specification】

Model	Blood centrifuge			Water supply capacity（t/h）	Motor power（kw）	Overall weight（kg）	External dimensions（mm）
	Diameter（mm）	Bowl Volume（L）	Speed（r/min）
75	75	2.2	10000-19000	15200	1.5	300	760*450*1600
105	105	6	8000-16300	15700	2.2	570	840*500*1600
125	125	8	9000-15000	15750	3	610	900*500*1600
150	142	10	10000-14300	14300	3	665	900*550*1600


【Applications】
GFXB105 blood separator is one type of tubular separator. based on the original GF type separator, this machine has been improved through repeated experiments into a special type of blood separator. it is widely used in the separation of plasma and blood cells from human, pig, cow, sheep, chicken and other blood.
The main features of this machine are high plasma yield rate and minimal fragmentation rate of blood cells during separation.
The contact parts of the machine and materials are all made of stainless steel, which can meet GMP requirements of pharmaceutical industry.



Application in Plant Extraction
The separation process is an important process that directly affects the quality of plant extract end products.  Some polysaccharide, protein, pectin, saponin, insoluble fluid impurities that cannot be removed by filtration process, and fine particles that remain in the extraction process, etc. in the extraction solution.  As long as the configuration is reasonable and the centrifugal process is adopted, the problem can be solved well, the purification purpose of the product is finally achieved, and the product quality is effectively improved.


Application in Food Industry
Can be used for refining edible vinegar and edible oil in oil industry, removing fiber, pectin, insoluble protein, residual pulp and other magazines in fruit juice beverage, making beverage clear and transparent, separating natural pigment, removing impurities and fat in raw material solution, removing honey in sugar industry, and separating beer and yeast.



【Principle】
The separator consists of a machine body, a transmission system, a rotating drum, a liquid collecting system and a liquid inlet system.
The upper part of the rotating drum is linked with the flexible main shaft, and the bottom part is a damping sliding bearing.
The liquid phase with high density forms an outer ring, and the liquid phase with low density forms an inner ring, which flows to the respective liquid outlets on the upper part of the rotating drum to be discharged, and trace solids are deposited on the wall of the rotating drum and are manually discharged after being stopped.
